Beta Industries Precision Digital Electronic Rulers (16" to 80" Lengths)

Beta Industries Precision Digital Electronic Rulers

EXACT NON-CONTACT MEASUREMENT OF MATERIALS & STRETCH

Measure Films, Plates, Dies, Prints, Circuit Boards & More For Flexo, Offset, Screen, Wide Format, Electronics

SIZES/LENGTHS

• 16 inches (406 mm)
• 24 inches (610 mm)
• 30 inches (762 mm)
• 40 inches (1016 mm)
• 60 inches (1524 mm)
• 80 inches (2032 mm)

The Precision Digital Electronic Ruler’s Non-Contact measurement system accommodates samples of any thickness in lengths up to 80 inches (2000 mm). The digital readout displays absolute or incremental measurements with 0.0005" (0.01 mm) resolution.  A 50x microscope attached to a digital display traverses the area to be measured on a rugged steel beam. The operator selects inch or metric measurements with a resolution of either 0.0005 inches or 0.01 mm.

 Magnification: 50x (standard) optional: 25x, 75x, 100x available

FEATURES

• A large-format, high-contrast LCD display shows the distance moved across the sample
• The display and measuring system are powered by the self-contained battery, eliminating cables and chargers
• Incremental measurements can be made by setting the zero anywhere along the sample.
• Rubber feet rest solidly on the work surface and support the microscope micrometer assembly above the sample
• The Ruler’s stainless steel construction makes it appropriate for laboratory or production environments
• When very large samples are measured, the non-skid mounting feet are placed directly on the film, plate, or other substrates without damage.

INDUSTRIES and APPLICATIONS

• Graphics for print dimensions and register
• Platemaking for image geometry and feature size

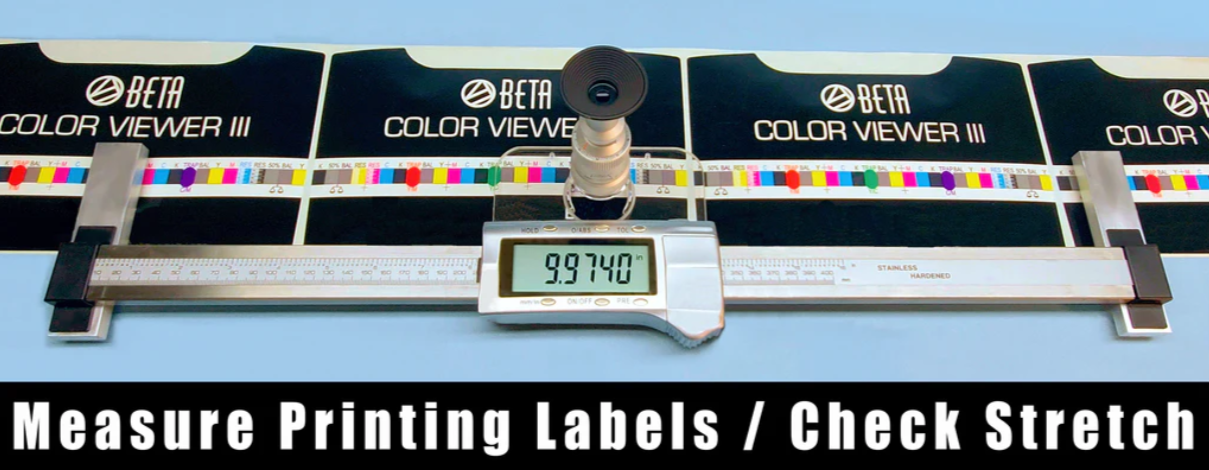

• Web printing for print length distortion
• Die cutting for alignment and re-knifing
• Printed circuit board imaging, trace width, hole diameter
• Metal etch and decoration verification

Please note that all Beta Precision Digital Electronic Rulers are custom-made specifically for your order.  If possible, we strongly encourage you to take advantage of our 10-Day Free Trial Program* prior to purchase. A 25% restocking fee will be applied for any Electronic Ruler purchased and returned to us for a refund or credit.

*ALL 10-Day Trials must be specifically requested as trials at the time the order is made through the "Notes" field above.

Product Brochure

Display Functions

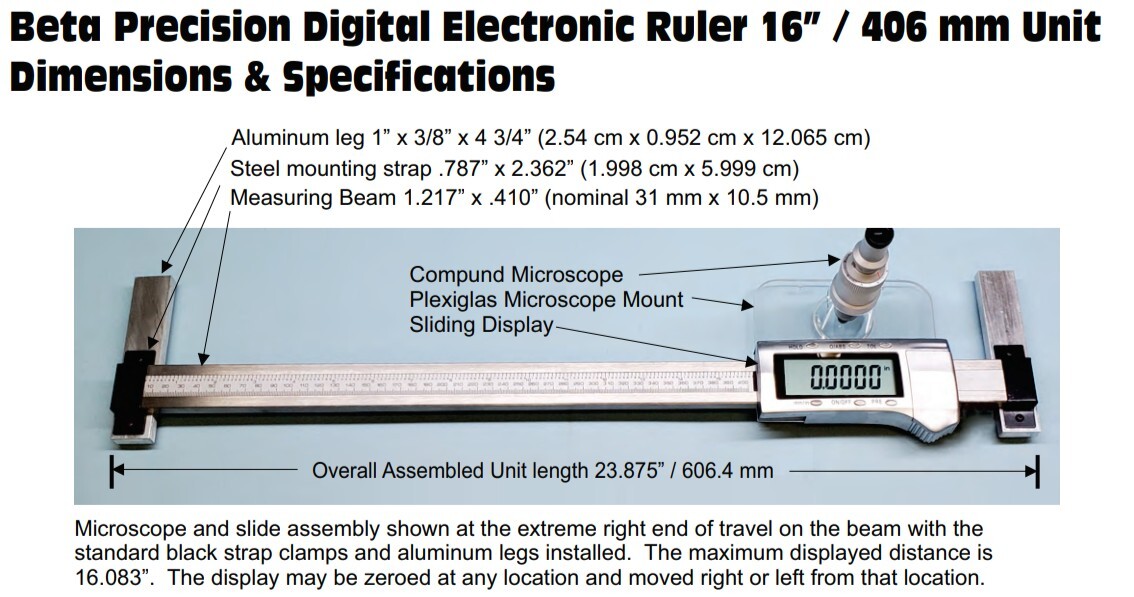

Specifications & Dimensions
